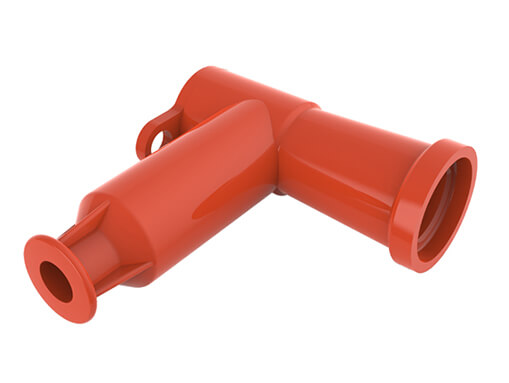

Unscreened Insulated Cable Adapter For Type C Bushing Up to 24 kV

•

• Product Code: CUSC

  This insulated adapter provides perfect sealing, electrical insulation and an electrical connection between all Compaq terminations and SF6-insulated switchgear up to 24 kV. It is designed to fit bushing profiles according to EN 50181 type C. Compaq elastomeric CUSC adapters are moulded parts which fit over the connection between the cable lug and the right-angled bushing of a gas insulated switchgear, where the air clearances are insufficient for normal operation. The non-tracking elastomeric housing has excellent track and erosion resistance, dielectric properties and environmental resistance, giving superb performance in areas of high humidity and electrical stress.

  Features & Benefits

  • For Voltage Range 6/10(12)kV up to 12/20(24)kV
  • Quick and easy to install, Works in combination with all Compaq cable terminations
  • Can easily be removed and reinstalled without the need for additional material or tooling
  • One size is suitable for all cable types from 70 -300mm2
  • The adapters are water-tight and guarantee uninterrupted operation, even under extreme environmental conditions with severe pollution
  • The adapters conform to CENELEC HD 629.1 specifications
