Heat Shrinkable Right Angle and Straight boots

Heat Shrinkable Right Angle and Straight boots

Product Code: CHRB/CHSB

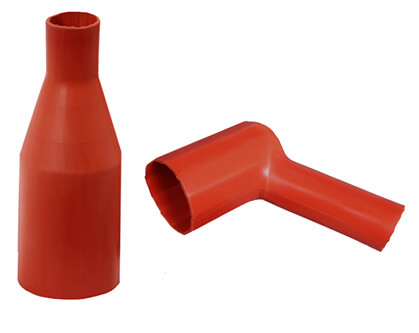

Used to insulate the bushings in the Cable termination box, where the clearance between phase to phase and phase to earth is less than the normal air clearance. These boots provides protection against flashover in the event of high humidity, rodent menace and surge impulse in switchgears and transformers.

Material: High quality Cross linked non tracking Polyolefin weather resistant material.

Standard Color: Red

Download Datasheet

Salient Features

  • Anti-tracking
  • Min. full recovery temp.: 130°C
  • Shrink ratio 2-3:1
  • Suitable for medium voltage applications Up to 36kV
  • Sealing mastic coated
Technical Parameters
PHYSICAL
Properties Value Standard
Tensile strength 12n/mm² MPA (Min.) ASTM D638
Ultimate elongation 350% (Min.) ASTM D638
Density 1.15 ± 0.2GM /cm3 ASTM D 792
Hardness 45 ± 10shoe d ASTM D 2240
Water Absorption 0.5 % (Max.) ASTM D 570
Thermal
Properties Value Standard
Accelerated Ageing 120°C for 500 hrs. ASTM D 638
Tensile Strength 11N/mm² MPA (Min.) ASTMD 638
Ultimate Elongation 300% (Min.) ASTM D 2671
Low temperature flexibility –(20°°c for 4hrs ) No cracking ESI 09-11
Shrink temperature 125°C IEC 216
Continuous Temperature Limit -40°C to 100°C IEC 216216
Electrical
Properties Value Standard
Dielectric Strength 15kV mm (Min.) ASTM D 149
Volume Resistivity 1x10 ohm. Cm (Min.) ASTM D 257
Dielectric Constant 5 (Max.) ASTM D 150
Resistant to track & erosion No tracking , erosion or flame failure up to 3.25 KV for 20 min. ASTM D 2303
