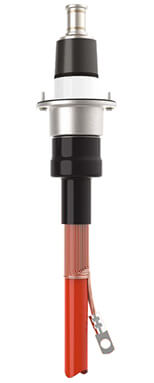

INNER CONE PLUG-IN TERMINATIONS FOR POLYMERIC CABLES UP TO 36KV

•

• Product Code: CPIT

  Compaq CPIT are designed to connect polymeric insulated cables into gas insulated switchgear, ring main units, circuit breakers and sealing boxes. Compaq Inner cone plug in terminations are designed for both aluminium or copper conductors in accordance with IEC 60228 and are compatible with inner cone bushings size 1, size 2, size 3 as per EN 50180/EN 5018. The inner cone termination incorporates a high-quality contact system which ensures reliable current transmission from the cable conductor to the busbar.

  SALIENT FEATURES

  • 100% Factory Tested
  • Easy, safe and quick installation, helps to prevent errors
  • Robust with high mechanical properties
  • The plug-in termination system is metal-enclosed
  • Fast installation due to the termination being integrated, and reduction in any mistake in installation
