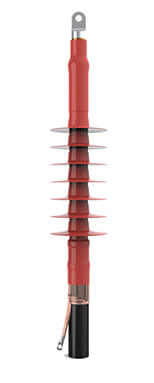

CHXSJ Series

Heat Shrink Cable Terminations suitable for Polymeric Insulated (XLPE) Cables up to 72.5kV

Product Code: CHIT/ CHOT

Compaq Heat Shrink Cable Termination Kits are suitable for both Indoor (Cable box, switchgear, transformer) and Outdoor (Pole mounted) terminating of Single Core Polymeric cables, and can be used with both compression and mechanical type Lugs.

Download Datasheet

Salient Features

  • Field proven technology
  • Fully designed & tested in accordance to IEC 60502
  • Wide range and possible to tailor for any cable type
  • Excellent performance & reliability
  • Suitable for use with mechanical lugs (available as an option)
  • Reliable operations, proven in practice
Voltage Class: 72.5 kV
Cable Cross Section (mm2) Cable Construction Kit Code Indoor type Kit Code Outdoor type
20-50 Unarmoured CHIT/66X/1C/70-120 CHOT/66X/1C/70-120
Armoured CHIT/66X/1C/70-120 CHOT/66X/1C/70-120
150-240 Unarmoured CHIT/66X/1C/150-240 CHOT/66X/1C/150-240
Armoured CHIT/66X/1C/150-240 CHOT/66X/1C/150-240
300-500 Unarmoured CHIT/66X/1C/300-500 CHOT/66X/1C/300-500
Armoured CHIT/66X/1C/300-500 CHOT/66X/1C/300-500
630-1000 Unarmoured CHIT/66X/1C/630-1000 CHOT/66X/1C/630-1000
Armoured CHIT/66X/1C/630-1000 CHOT/66X/1C/630-1000
