In modern power distribution systems, cable joints play a critical role in ensuring efficient and reliable connectivity between cables. Among the various types of joints available, pre-moulded slip-on (or push-on) cable joints stand out for their simplicity, efficiency, and superior performance. This blog delves into the technology, applications, and benefits of pre-moulded slip-on cable joints, providing a comprehensive understanding for professionals in the power and electrical industry.

What Are Pre-moulded Slip-On Cable Joints?

Pre-moulded slip-on or push-on cable joints are pre-engineered, factory-moulded insulation systems designed to connect two or more cables seamlessly. Unlike traditional methods requiring field-applied tapes, heat shrink, or cold shrink processes, these joints come pre-moulded in their final shape. Installation involves simply "pushing" or "slipping" the joint onto the prepared cable ends.

Key Features of Pre-moulded Slip-On Joints

• 1. Factory Engineered for Precision
• Manufactured using high-performance elastomeric materials, such as EPDM or silicone rubber.
• Pre-moulding ensures consistent quality and eliminates reliance on on-site craftsmanship.
• 2. High Dielectric Strength
• Provides excellent electrical insulation, ensuring system safety and efficiency.
• Reliable under high voltage stress, making them suitable for medium and high-voltage applications (up to 72.5kV).
• 3. Integrated Stress Control
• Built-in stress control systems manage electrical stress concentration at cable terminations.
• Enhances longevity and reduces the risk of failure due to dielectric breakdown.
• 4. Compact and Lightweight Design
• Ideal for confined spaces where traditional jointing methods may be cumbersome.
• Reduces the overall weight and complexity of the installation.

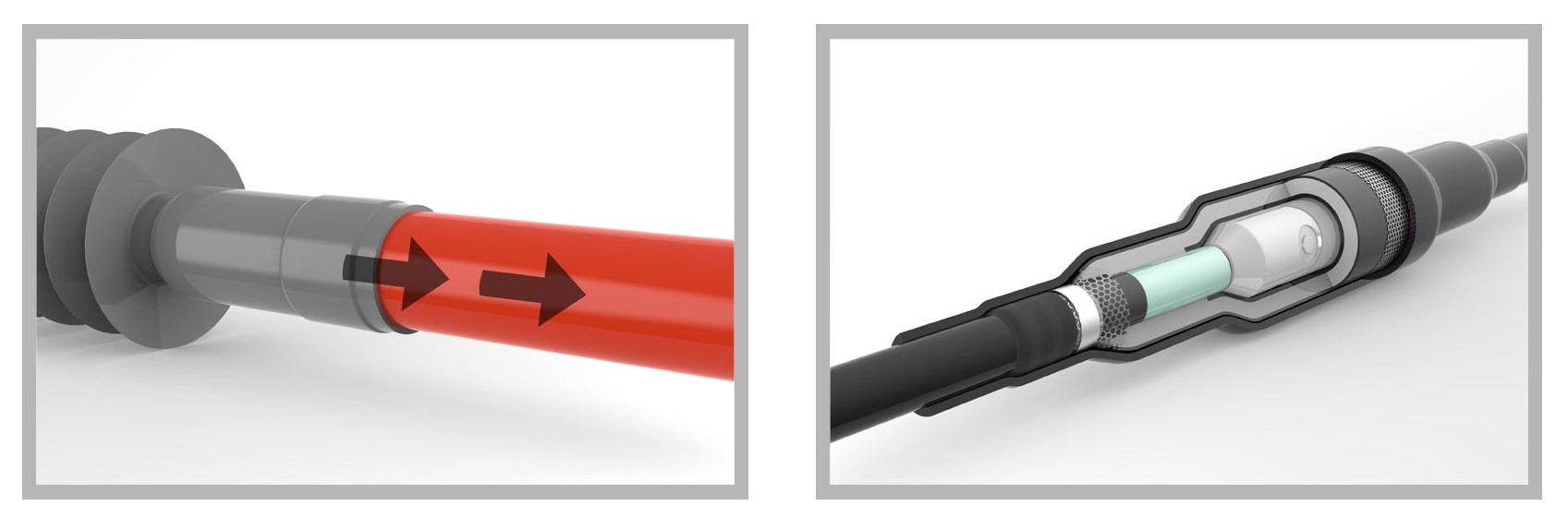

How Do Pre-moulded Slip-On Joints Work?

The installation process is straightforward:

• 1. Cable Preparation:
• The cables to be joined are stripped and prepared as per the manufacturer's guidelines, ensuring clean insulation and conductor surfaces.
• 2. Application of Stress Control Elements:
• Depending on the design, additional stress control components (if required) are positioned on the cable.
• 3. Sliding the Pre-moulded Joint:
• The pre-engineered joint is lubricated (with approved non-conductive grease) and pushed or slipped over the prepared cable ends.
• 4. Alignment and Final Adjustment:
• The joint is carefully positioned to ensure correct alignment with the cables.
• 5. Testing and Commissioning:
• Once the joint is installed, it undergoes electrical testing to confirm its reliability before being commissioned into service.

Advantages of Pre-moulded Slip-On Joints

• 1. Ease of Installation
• No need for heat or specialized tools, reducing installation time and complexity.
• Lower dependence on skilled labour compared to heat shrink or cold shrink alternatives.
• 2. Enhanced Reliability
• Factory-moulded components minimize human error during installation.
• Consistent performance under a wide range of operating conditions.
• 3. Maintenance-Free Operation
• Designed for long-term use, with minimal need for periodic inspection or maintenance.
• 4. Wide Range of Applications
• Compatible with various cable types, including XLPE, PILC, and EPR-insulated cables.
• Used in utilities, industrial facilities, renewable energy systems, and urban power grids.

Applications of Pre-moulded Slip-On Joints

• 1. Medium and High Voltage Power Transmission:
• Seamlessly connects power cables in substations, wind farms, and underground grids.
• 2. Industrial Power Distribution:
• Ensures reliable power supply in manufacturing plants and other high-demand environments.
• 3. Renewable Energy Projects:
• Used in solar and wind installations where fast and dependable cable connections are critical.

Compaq’s Pre-moulded Slip-On Cable Joints: Setting the Standard

Compaq International offers a premium range of pre-moulded slip-on cable joints engineered for the most demanding applications. Our solutions feature:

• High-grade materials for superior insulation and mechanical strength.
• Custom designs for compatibility with a wide range of cable sizes and configurations.
• Rigorous testing to meet international standards like IEC and CENELEC.

Pre-moulded slip-on or push-on cable joints are revolutionizing the way cable connections are made, offering a combination of simplicity, performance, and reliability. Whether you're dealing with medium-voltage grids or high-voltage transmission lines, these joints provide an efficient, long-lasting solution to ensure seamless power delivery.

Explore Compaq International’s range of pre-moulded slip-on cable joints to experience innovation and reliability in power cable accessories.
